Matrox M9120 Plus LP PCIe x16
→ 2 à 4 sorties écran
→ Résolution vidéo maximale : 1920x1200
→ Type de bus : PCIe x16
→ Types de sortie d’affichage prise en charge : DVI SL, Analog
→ Garantie 3 ans
Matrox M9120 Plus LP PCIe x16
New
More info

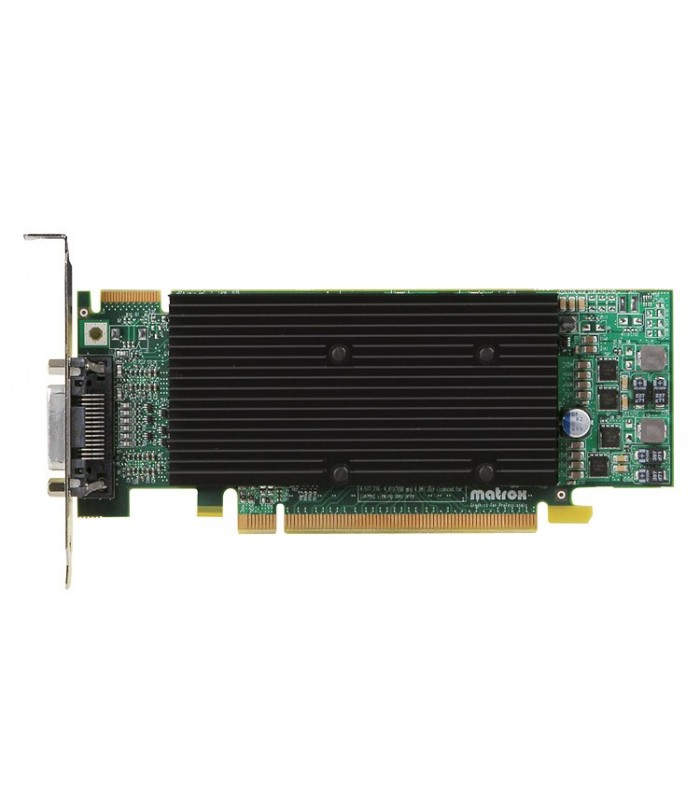

The Matrox M9120 Plus LP PCIe x16 low-profile, dual monitor graphics card renders pristine image quality on up to two displays, at resolutions up to 1920x1200 (digital) or 2048x1536 (analog) each. This card also supports up to four analog displays via an aftermarket quad-upgradeable cable, at resolutions of up to 1920x1200 each.
Data sheet
| Max Digital Resolution per Output | 1920x1200 |
| Graphics Memory | 512MB |
| Card Dimensions | 16,76 cm [6,6"] (L) x 6,85 cm [2,7"] (H) |
| Card Form Factor (PCB / bracket) | LP / LP |
| Extra bracket in the box | ATX |
| Connectors | 2 x DVI-I |
| Bus Type | PCIe x16 |
| DVI to Analog (HD15) Adapters | 2 DVI-I to HD15 |
| Max Display Outputs per Card | 2 (4 with quad analog upgrade cable) |
| Supported Display Output Types | DVI SL, DVI DL, Analog |
| Max Analog Resolution per Output | 2048x1536 |
| Powerdesk Software | Yes |
| EMC Certifications | Class B |
| Supported Operating Systems | Microsoft® Windows® 7/8, Windows Vista, Windows XP, Windows Embedded Standard 7, Windows Server 2003/2008/2012, Windows Server 2008 R2 et Linux |
| Warranty | 3 years |
