Panel PC Fanless
Informations

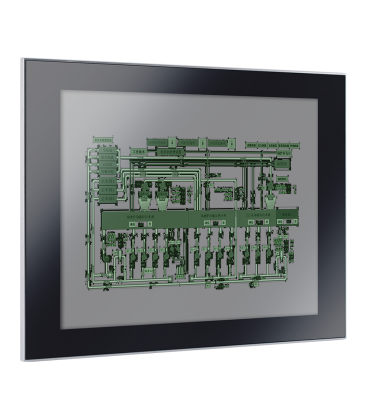

Panel PC Fanless - 19" (16/9)
→ Intel Celeron 4 coeurs / Core I5 / I7
→ Face avant IP65
→ Sans ventilation
→ Écran tactile P-Cap ou Résistif
→ Version à encastrer ou à poser (VESA)
Panel PC Fanless - 19" (16/9)
New
Informations complémentaires
| Dimension (mm) | 460 mm x 369 mm x 66 mm | |
| Weight | 6.38 kg | |
| LCD size | 19" | |
| Max Resolution | 1280 x 1024 | |
| Luminance (cd/m2) | 250 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Viewing Angle (H-V) | (L) 85 / (R) 85 / (T) 80 / (B) 80 | |
| Backlight | LED | |
| Touch Screen | Multi-point capacitive touch screen / Resistive touch screen | |
| CPU | Support Intel® Celeron J1900/ J6412/ 4205U Support Intel® Core™ i3-8145U / i5-7200U | |
| Chipset | ||
| Memory | Type / Capacity | DDR3L-1600 DDR4-2400 |
| SO-DIMM | N/A | |
| On board memory | DDR3L 8 Go max DDR4 16 Go max | |
| VGA | Yes | |
| DVI / HDMI | DVI-D | |
| USB | 4 | |
| COM | 4 / 6 | |
| MiniPCIe | Slot 1 | (Full Size) PCIe / USB / mSATA |
| Slot 2 | (Half Size) USB / mSATA | |
| Ethernet | 2 x Intel 1000Mbps RJ-45 | |
| Audio | Optional | |
| Power Input | 42W | |
| Panel frame water proof | IP65 | |
| Expansion | 1 x Mini-pcie slot, expandable 3G, WIFI wireless card, 1 x EasyBUS slot | |
| Work Temp. | -20~60℃ | |
| Operating Humidity | 5~95%@40℃, non-condensing | |
